Ultrasonic Battery Tab Welder Automatic Electrodes Welding Machine

Product Categories
Shandong Gelon Lib Co., Ltd
Contact Now

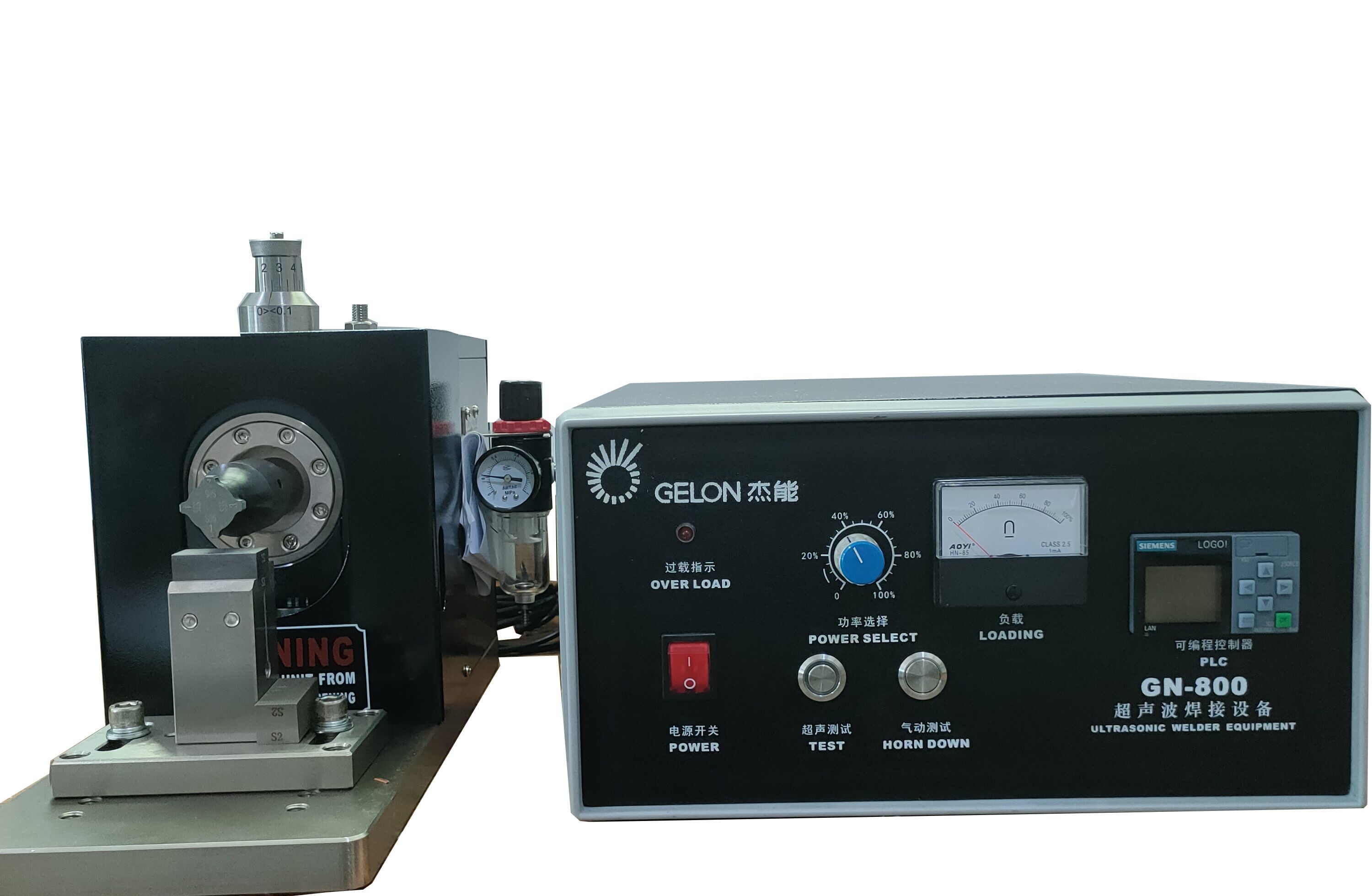

Ultrasonic Battery Tab Welder Automatic Electrodes Welding Machine

Brand Name : Gelon

Model Number : GN800

Certification : CE

Place of Origin : China

MOQ : 1SET

Price : USD6300-6500/SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000sets/month

Delivery Time : about 15days

Packaging Details : Wooden Case/Can Custom

Frequency (KHz) : 40

nput Max Electric Power （VA） : 800

Power : 220V±10%/can custom

Air Pressure （Mpa） : 0.1-0.5

Time control(S ) : ＜1s

NW(kg) : 50-60

Contact Now

2022 Newest Battery Tab Welding Electrodes Automatic Packing Tabs Welder Ultrasonic Welding Machine

Ultrasonic welding Machine as a clean,high efficency ,precise
and economic welding technology , ultrasonic welding has
been widely used in many industries such as battery
production ,electronics ,appliances and auto manufacture etc.
No.
Frequency
(KHz)
Input Max
Electric
Power
(VA)		 power
Air Pressure
(Mpa)
Time
control
(S)		 (kg)
GN700 40 700 220V±10% 0.1-0.5
＜1s
 50-60
GN800 40 800 220V±10% 0.1-0.5
＜1s
 50-60
GN1000 25 1000 220V±10% 0.1-0.5
＜1s
 50-60
GN2000 20 2000 220V±10% 0.2-0.5
＜1s
 70-80
GN3000 20 3000 220V±10% 0.2-0.5
＜1s
 70-80
GN4000 20 4000 220V±10% 0.2-0.5
＜1s
 70-80
GN4500 20 4500 220V±10% 0.2-0.5
＜1s
 70-80
GN5000 20 5000 220V±10% 0.2-0.5
＜1s
 70-80
GN5500 20 5500 220V±10% 0.2-0.5
＜1s
 70-80
GN6000 20 6000 220V±10% 0.2-0.6
＜1s
 70-80
GN6500 20 6500 220V±10% 0.2-0.6
＜1s
 70-80
GN8000 20 8000 220V±10% 0.2-0.6
＜1s
 70-80
Remark:1,ultrasonic handpiece size(L*W*H):450*185*235mm 2,ultrasonic generator
size(L*W*H):465*210*600 mm 3,work table size:600*900*750mm

Ultrasonic Battery Tab Welder Automatic Electrodes Welding MachineUltrasonic Battery Tab Welder Automatic Electrodes Welding MachineUltrasonic Battery Tab Welder Automatic Electrodes Welding MachineUltrasonic Battery Tab Welder Automatic Electrodes Welding Machine

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
